Right Bottom Frame in p06793

HP ---- High pressure pump connection. LP ---- Low pressure pump connection. P ---- Out-let connection. HPG ---- Gauge connection on high pressure pump line. LPG ---- Gauge connection on low pressure pump line. Pt ---- Pilot pressure connection (Optional). T1 ---- Tank connection of high pressure relief valve. T2 ---- Tank connection of low pressure unloading valve. F ---- Filter port connection (T1 & T2). R ---- Outlet connection (reduced pressure)

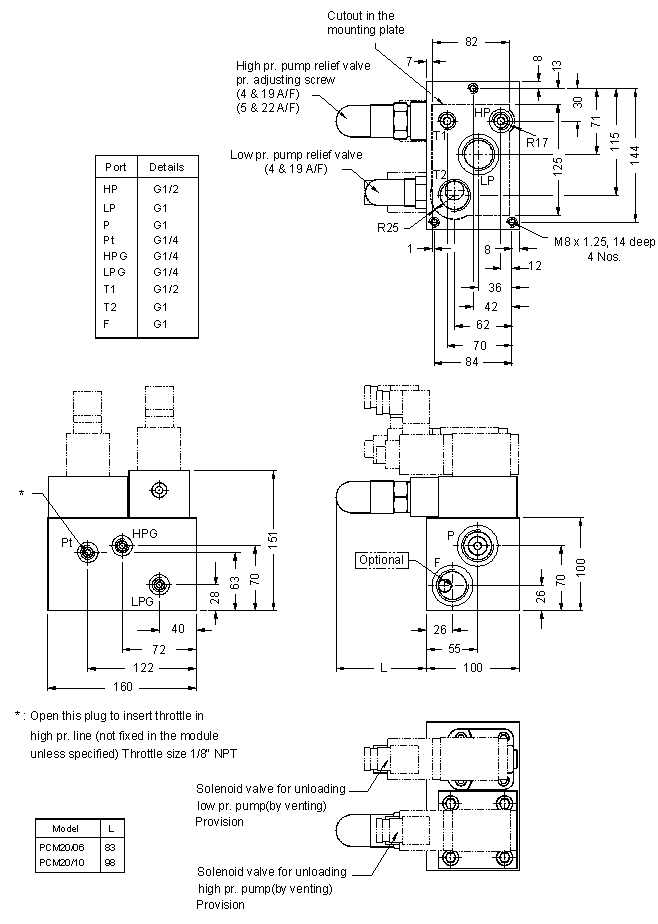

Construction PCM 20/06 and ........... PCM 20/10	Direct acting poppet type high pressure relief valve two stage poppet type low pressure unloading valve. All valves fitted in cavities machined as per ISO7368
Mounting ...........................................	Threaded bodies : company standards.
Mounting position .............................	Optional.
Flow direction ...................................	As per hydraulic symbol.
Operating pressure ...........................	For low pressure pump 50 and 100 bar. For high pressure pump 100, 200, 315 bar.
Hydraulic medium .............................	Mineral oil.
Viscosity range ......................….......	10 cSt to 380 cSt.
Fluid temperature range ...................	-20 °C to +70 °C.
Fluid cleanliness requirement ...........	As per ISO 16/13.
Maximum flow handling capacity ......	Model	High pressure	Low pressure
	PCM 20/06 PCM 20/10	25 l / min. 60 l / min.	160 l / min. 160 l / min.
Mass .................................................	14 Kg. APPROX

Pressure Control Module with unloader valve size 20	PCM20
High pressure relief valve
Unloader pressure adjustment spring ratings
High pr. relief valve pr. adjustment spring ratings
Provision
Solenoid unloading (provision) for high pr. relief valve
Solenoid unloading (provision) for low pr. unloading valve
Design Code	21
